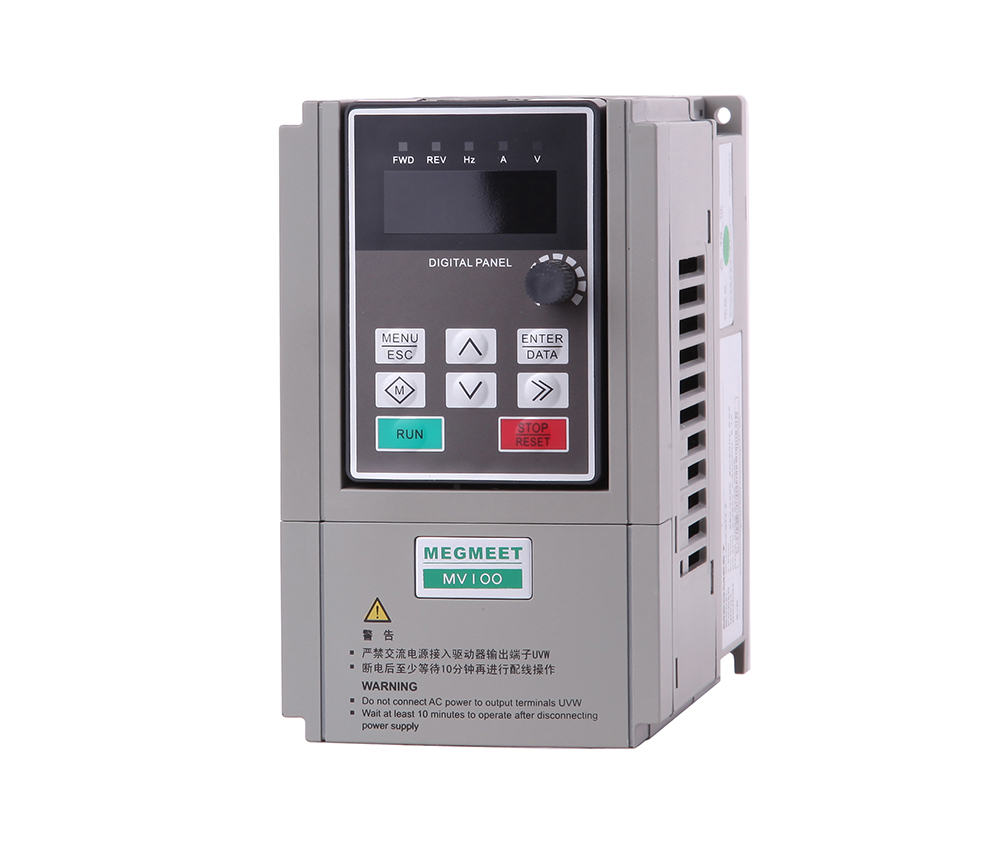

AC Drive MV100G
MV100G
MV100G AC drive adopts a new platform for hardware design, integrates V/F control, and offers excellent drive performance. Compact design, rich set of functions, easy to install and operate, quick commissioning and maintenance, the drive has a favorable price-performance ratio for general purpose use and the OEM market.
Download
Features
Easy to Use
Smart keypad with parameter upload/download, optional external keypad; manually removable fan
Excellent Performance
Optimized V/F control, providing larger torque on low frequency
High Overload Capacity
150% rated current for 1 min, 200% rated current for 1s
High Reliability
IPM module, redundant capacity
Superior Adaptability
Independent airduct design and PCB conformal coating techniques, well adapted to power mains fluctuation and low voltage (-10%)
Applications

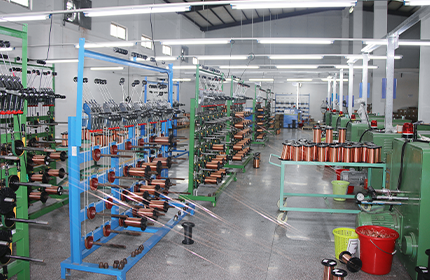

Widely used for woodworking, carving, light industry, food, and wire & cables machines
Download
MV Series High-Performance Drive Brochure
11.5M
2023-09-06
MV100 Series Compact Drive Quick Start and Installation Manual
545K
2023-09-06
