Control System MC8000 Series Medium PLC
MC8000 Series Medium PLC

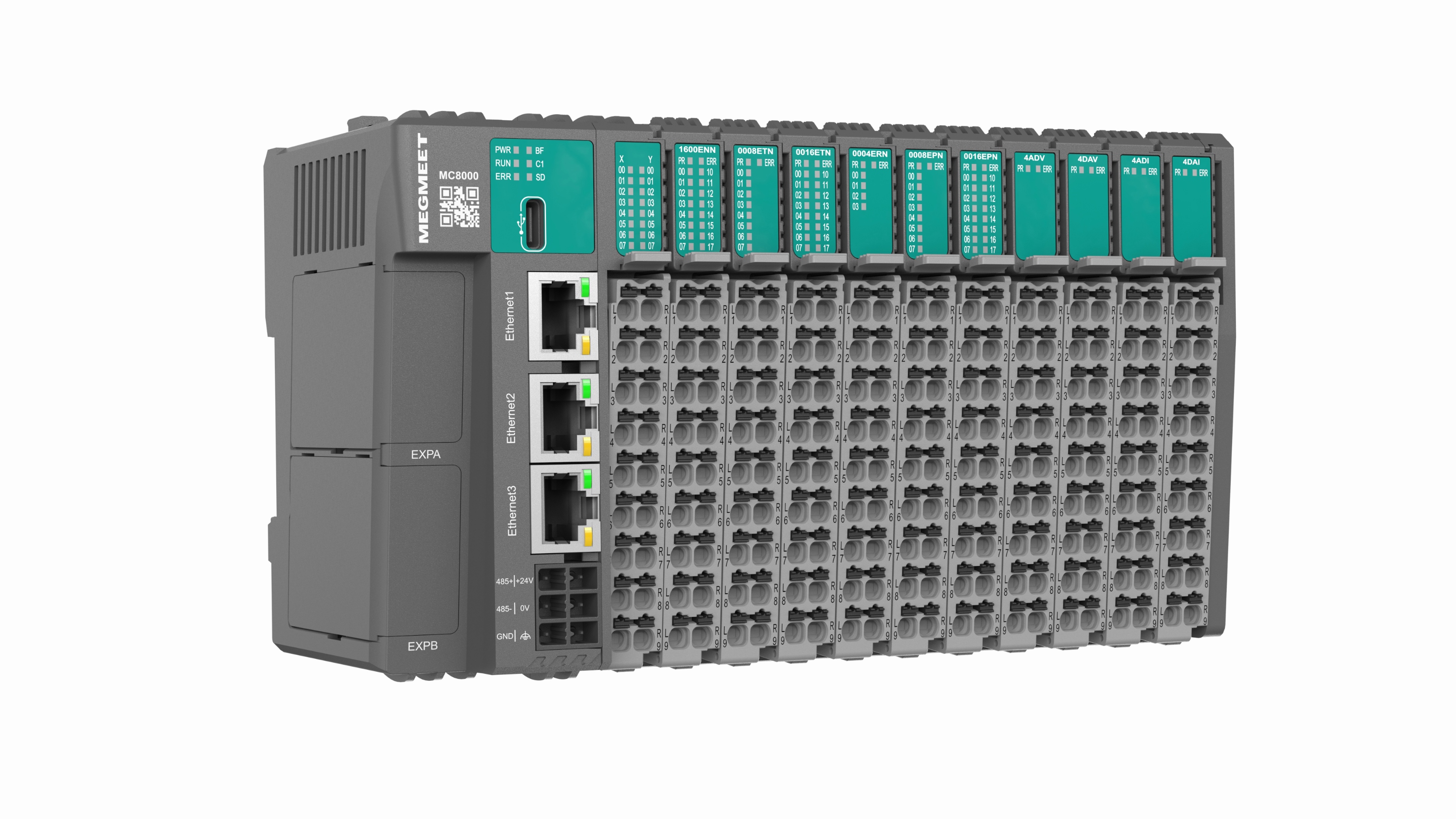

MC8000 series product is a new generation of high-performance and cost-effective medium PLC based on the mOPAX platform of MEGMEET. It is fully compatible with the IEC61131-3 specification and supports LD, ST, SFC, CFC, FBD, and IL programming languages; adopts the blade-type module design, and supports multi-core processor. Based on multi-bus protocols such as EtherCAT and Profinet, a multi-axis motion control system is constructed o meet the high-speed response requirements of intelligent devices.
Download
Features
Strong expansion & networking capabilities
Expand up to 32 modules; Full protocol compatibility, support Modbus / EtherCAT / EtherNet IP / Profinet, etc.
Ultra-large capacity
Support 10M program capacity, 20M data capacity, 512KB retention, for complex logic and data processing
Reliably excellent performance
Four-core A55 processor; 8*200K high-speed input, 8*200K pulse output (single pulse, pulse + direction, AB phase, FWD+REV, etc.)
Multi-axis control & precision sync
1ms/16-axis sync, support 16 / 32 / 64-axis EtherCAT control
Flexible & convenient operation
12mm machine body, saving space; PUSH In terminal, easily wiring and replacing without tools
Applications
It is widely used in 3C, packaging machinery, new energy, semiconductors, lithium batteries, textiles, and many other industries.
