SPS Series Spindle Servo Drive
SPS series spindle servo drive has the characteristics of high power density, compact design, high precision, high response and high overload capacity, supports different kinds of encoders, provides pulse type bandwidth up to 4M, and simplifies the wiring and use of bus type with flexible topology. The servo drive is mainly used in the machine tool spindle area, such as machining centers, drilling & tapping, and turning&milling.
Download
Features
Compatible Motors
Fit for various asynchronous servo motors/motorized spindles, PM synchronous servo motors/motorized spindles, and 4th axis/DDR motors/linear motors/5th axis with different inertia
Large Bandwidth
Excellent Performance
Quick dynamic response, high locating accuracy, and high overload capacity
Large Bandwidth
Input and output pulse frequency up to 4Mpps
Multiple Encoders
Supporting ABZ/ABZ (UVW)/resolver/sincos/Endat1.X/2.X/Hiperface/Tamagawa serial intelligent absolute encoder (17-bit/22-bit)/BISS 22/26-bit (RENISHAW bus encoder)
Rich Bus
Supporting Mod-bus, CANopen and EtherCAT
Various Commissioning Tools
Keypad, PC (Interface, TwinCAT)

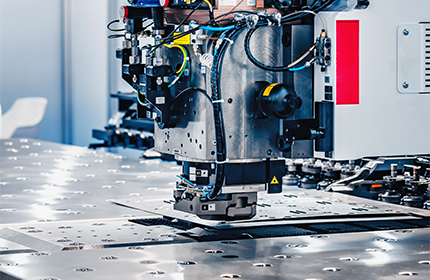

Applications

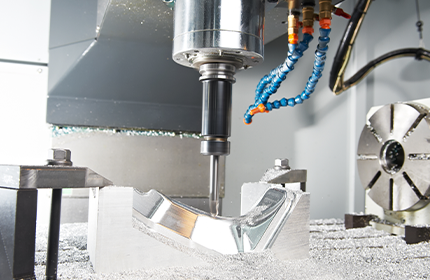

Widely used for CNC machine tools, turn-mill combination and machining centers
