Datacenter and Networking Power Solution 90 kW 800-50 VDC Power Shelf

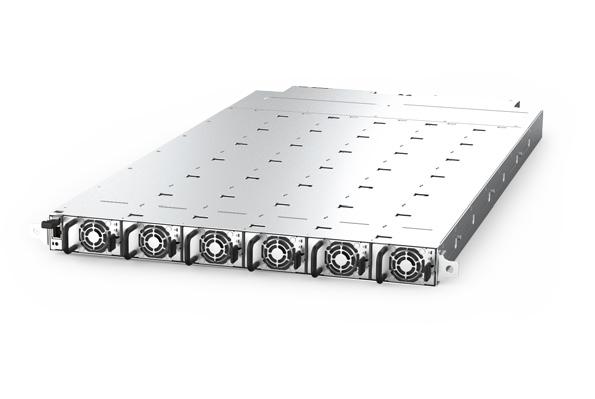

90 kW 800-50 VDC Power Shelf
The PU490K-H9616A is a high-power-density, high-efficiency 90 kW air-cooled server power supply system designed for 800 VDC input platforms. It consists of six 15 kW sub-modules and supports N+1 / N+N redundant design. For higher power requirements, the system supports multi-shelf expansion to provide scalable power capacity for high-density server applications.
Features
High-Density Scalability
Delivers 90 kW capacity in a 1U chassis with 800 VDC input and multi-shelf expansion support.
Flexible Open Architecture
Fits standard 19-inch racks and adapts seamlessly to 21-inch systems while achieving up to 98% peak efficiency.
Modular Fault Tolerance
Provides N+1/N+N redundancy with fully hot-pluggable rectifiers, controllers, and shelves for quick online servicing.
Applications
Widely used in standard IDC rooms, enterprise data centers, and high-density compute racks.
