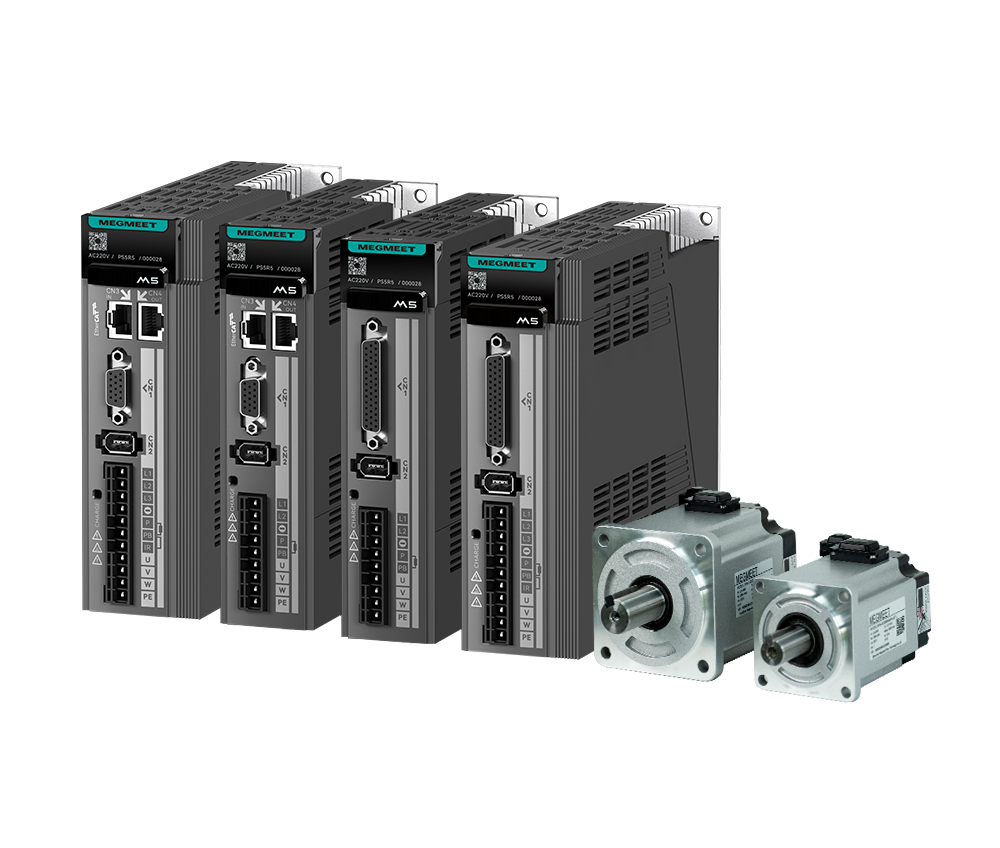

Servo System M3 Basic Servo System
M3 Basic Servo System
M3 servo system is featured with high response, high sync and high precision. The servo system has a whole set of functions such as online inertia tuning, gain auto-tuning, vibration suppression, quadrant compensation, facilitating the use of servo drive in practice, especially with Megmeet’s Ms host controller. With M3, all advantages you desire for mechanical equipment regarding precision, stability, efficiency, easy operation are obtained.
Download
Features
Compatible with Mainstream Encoders
17-bit multi-turn absolute magnetic encoders
High Bandwidth
I/O pulse up to 4 Mpps; differential and open-collector input; A/B quadrature, direction + pulse, and CW/CCW
High Overload Capacity
3 times of overload
High Response
Speed loop bandwidth 2.1 kHz; high current loop and speed loop refresh frequencies; quick command response and high stiffness
Optimized Motors
Smaller size with equal power, IP67 protection, and superior anti-vibration ability of encoders
Applications
Widely used for CNC machine tools, 3C products and lithium battery
Download
M3 Series Servo System Brochure
9M
2026-05-14
M3-P Series Servo System User Manual
9.4M
2026-05-14
M3-N Series Servo System User Manual
11.1M
2026-06-24
