Industry-Specific Products MV810 820 (SP2) AC Drive for Solar Pumps

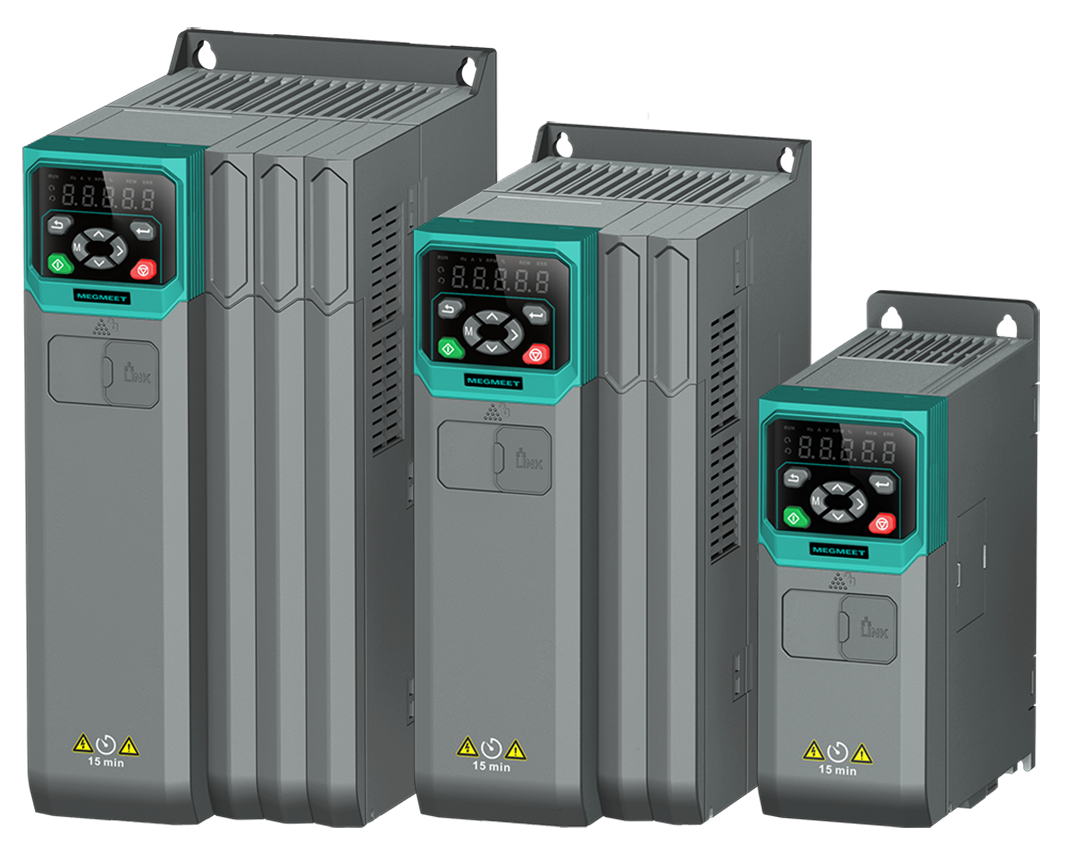

MV810 820 (SP2) AC Drive for Solar Pumps
MV810 820 (SP2) Series AC Drive for Solar Pumps, which takes different applications of solar pumps into consideration based on Megmeet new-generation general purpose vector platform MV800, can convert DC of photovoltaic array to AC power and drive pumps to run in high efficiency for water supply in remote regions where power facilities are scarce.
Download
Features
Photovoltaic Inverter MPPT
Active MPPT algorithm, with efficiency up to 99%
Integrated Control/Drive
Suitable for asynchronous motors, PMSM and BLDC motors
DC & AC
Fit for both DC input and AC input, with automatic switchover
Automatic Hibernation & Wakeup
Automatic hibernation & wakeup based on sunlight intensity, requiring no manual operation
Level Control
Dry-running protection, and level detection
Automatic Recording
Total running time, total power generated and total water pumped
Simple Operation
24-hour work unattended, remote start and stop (optional)
Applications

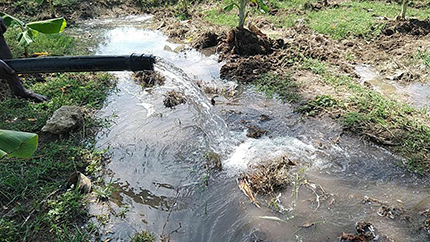

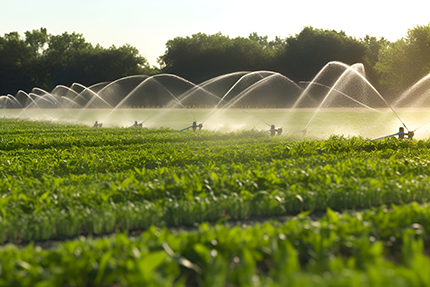

Widely used for farm irrigation, drinking water supply and so on
Download
MV810 820 (SP2) AC Drive for Solar Pumps Brochure
3.5M
2026-06-10
MV810 820 G1(SP2) Series AC Drive - Solar Pump Control Instructions
72.2K
2025-10-21
MV810 820 (SP2) Series AC Drive for Solar Pumps User Manual
10.6M
2026-06-15
MV810G1 (SP2) Series AC Drive for Solar Pumps Simplified User Manual (Small Keypad)
676K
2026-06-01
MV820G1 (SP2) Series AC Drive for Solar Pumps Simplified User Manual (Large Keypad)
1.1M
2026-06-01
