Industry-Specific Products S6 New-Generation Spindle Servo Drive

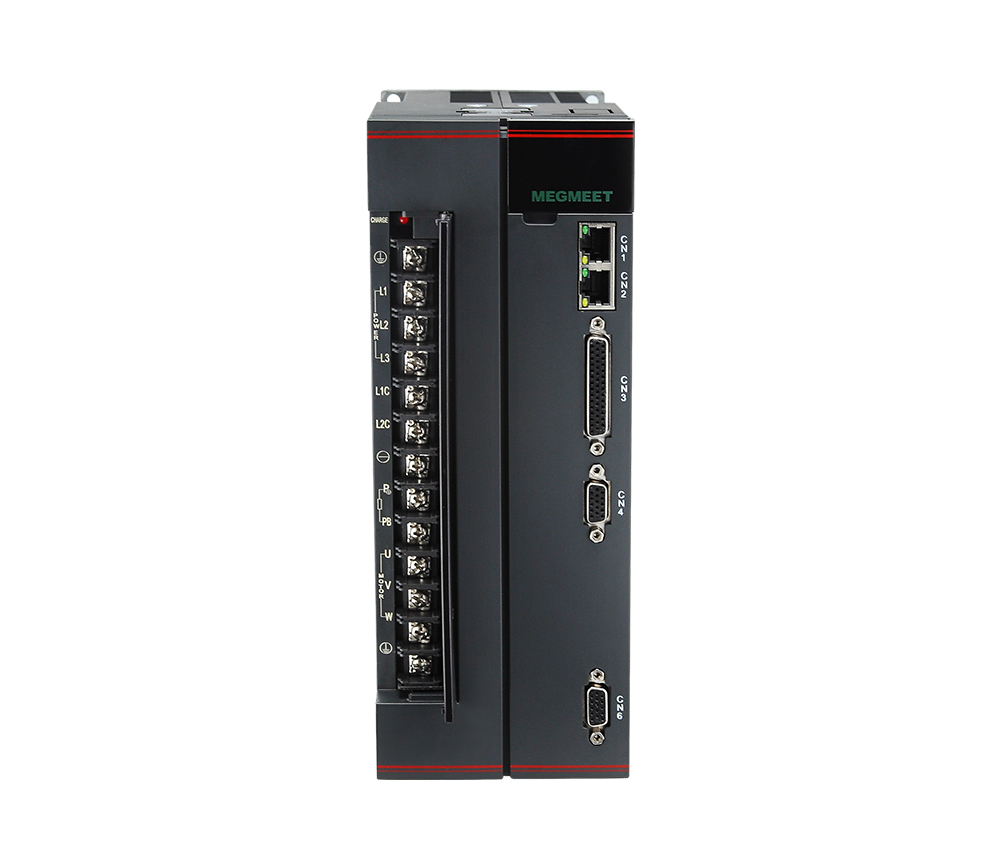

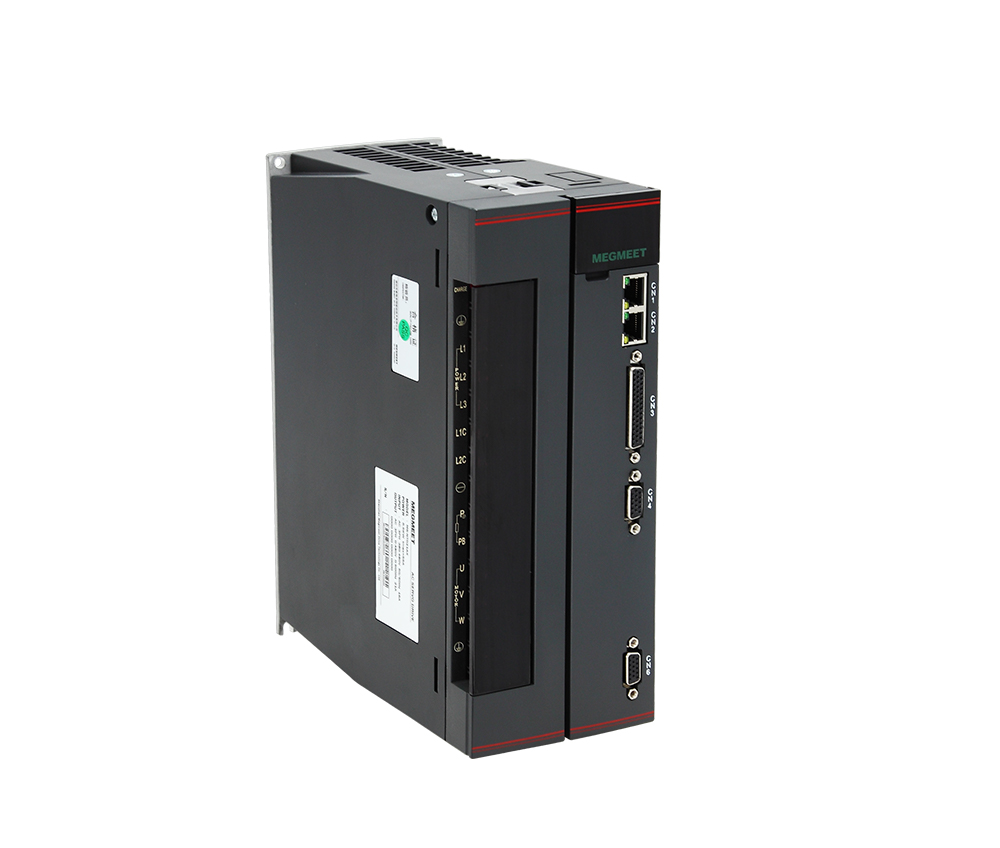

S6 New-Generation Spindle Servo Drive
S6 series spindle servo drive, developed on a new hardware platform, optimizes the core algorithms, features high power density, compact design, high precision, quick response and strong overload capacity, provides an integrated encoder terminal with pulse type bandwidth up to 4 M, and offers complete bus protocols with easy wiring, use, commissioning and flexible topology. The servo drive is mainly used in the machine tool spindle area, such as machining centers, drilling&tapping, and turning
Download
Features
Fully Closed-Loop Control
Reducing control errors caused by mechanical clearance, elasticity and the like, improving control precision and system rigidity
Advanced Servo
Advanced servo functions such as inertia tuning, vibration suppression and rigidity table
Compatible Motors
Fit for various asynchronous servo motors/motorized spindles, PM synchronous servo motors/motorized spindles, and 4th axis/DDR motors/linear motors/5th axis with different inertia
Excellent Performance
Quick dynamic response, high locating accuracy and strong overload capacity
Integrated Encoder Terminal
Supporting incremental, sin/cos and absolute encoders, no need to change the encoder interface card
Multi-function USB Interfaces
Used for host controller commissioning and firmware upgrade
Multiple ways of commissioning
Keypads, PC (Ms host controller and TwinCAT)
Rich Buses
Supporting Mod-bus, CANopen, EtherCAT, Mechatrolink-III, etc.
Applications

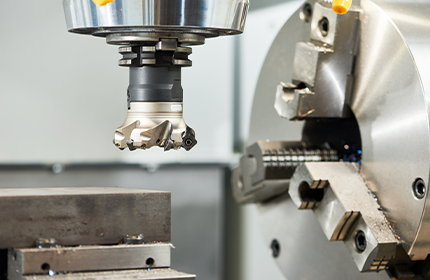

Widely used for turn-mill combination, drilling & tapping, and machining centers
Download
S6 Series High-Performance Spindle Servo System Brochure
8.5M
2025-04-25
S6 Series Spindle Servo Drive User Manual
4.9M
2026-01-07
S6 Series EtherCAT Communication File
16.9K
2023-09-06
Servo Host Computer Ms Software (M5,DM5,M6,HM6,M6-L,S6,MV600J6/J6B,MV810J)
78.8M
2024-12-24
