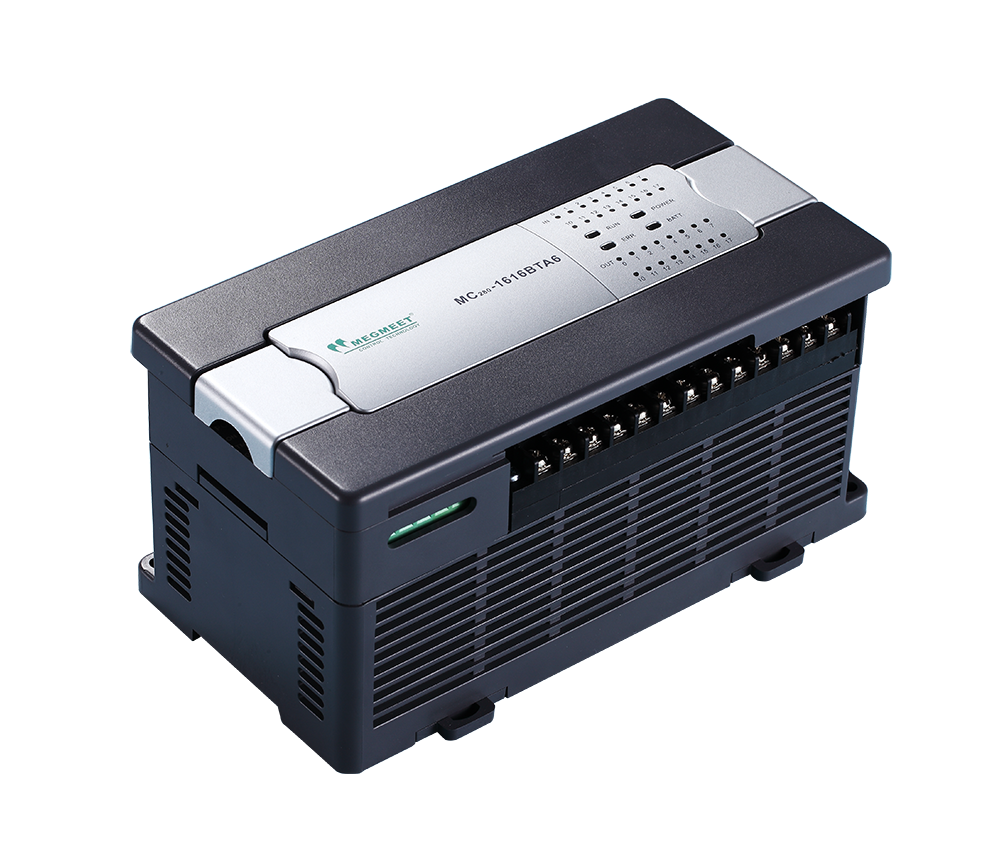

Control System MC280/MC200E Series Small PLC
MC280/MC200E Series Small PLC
The MC280/MC200E series motion programmable logic controllers use ARM+FPGA dual-core processor, which improves the operation speed and performance, especially highlighting in pulse and count input-output performance. Moreover, MC280/MC200E series PLC supports interpolation, electronic gear, electronic CAM and other motion control functions to fully meet customer needs.
Download
Features
Built-in High-Speed Counter
8-channel unidirectional high-speed count, up to 100KHz; 4-channel AB phase count, up to 100KHz, and support quadruple frequency
Dual-core Processor
Adopt ARM+FPGA dual-core processor to realize multi-task parallel processing
Fast Execution Speed
Program execution speed can up to 0.065us
Interpolation Function
Support linear interpolation, circular interpolation, continuous interpolation, normal and tangent interpolation, and helix interpolation
Large Program Capacity
Program capacity: 32K(Max.);
R element capacity: 32K(Max.), 4 times that of D element
Applications

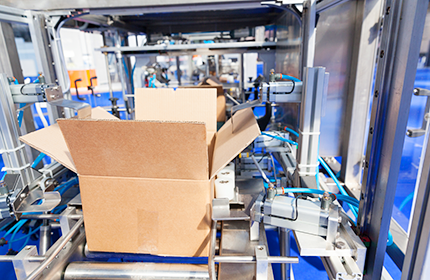

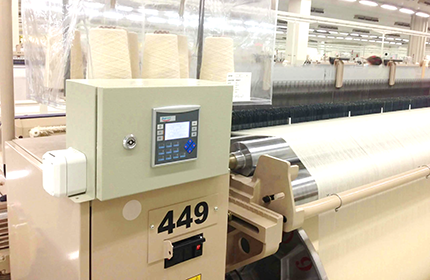

It is widely used in municipal services, textile, package printing, HVAC, non-standard equipment and other industries
Download
Control System Brochure.pdf
2024-09-24
PLC Programme Software X_Builder 2.15.zip
55.8
2023-08-31
MC Series Small PLC Programming Reference Manual.pdf
2023-12-29
PLC Wire Drive.zip
3.67
2023-08-31
MC280 Series PLC User Manual.pdf
2024-05-31
MC280 Series Basic Module User Quick Start Manual.pdf
2024-05-31
MC280 Series 80 IO Point Basic Module User Quick Start Manual.pdf
2024-05-31
MC280&MC200E Motion Control User Manual.pdf
2024-05-31
MC200E-4040BTA24 Instruction.pdf
2024-05-31
