Control System MU300 Series Small PLC

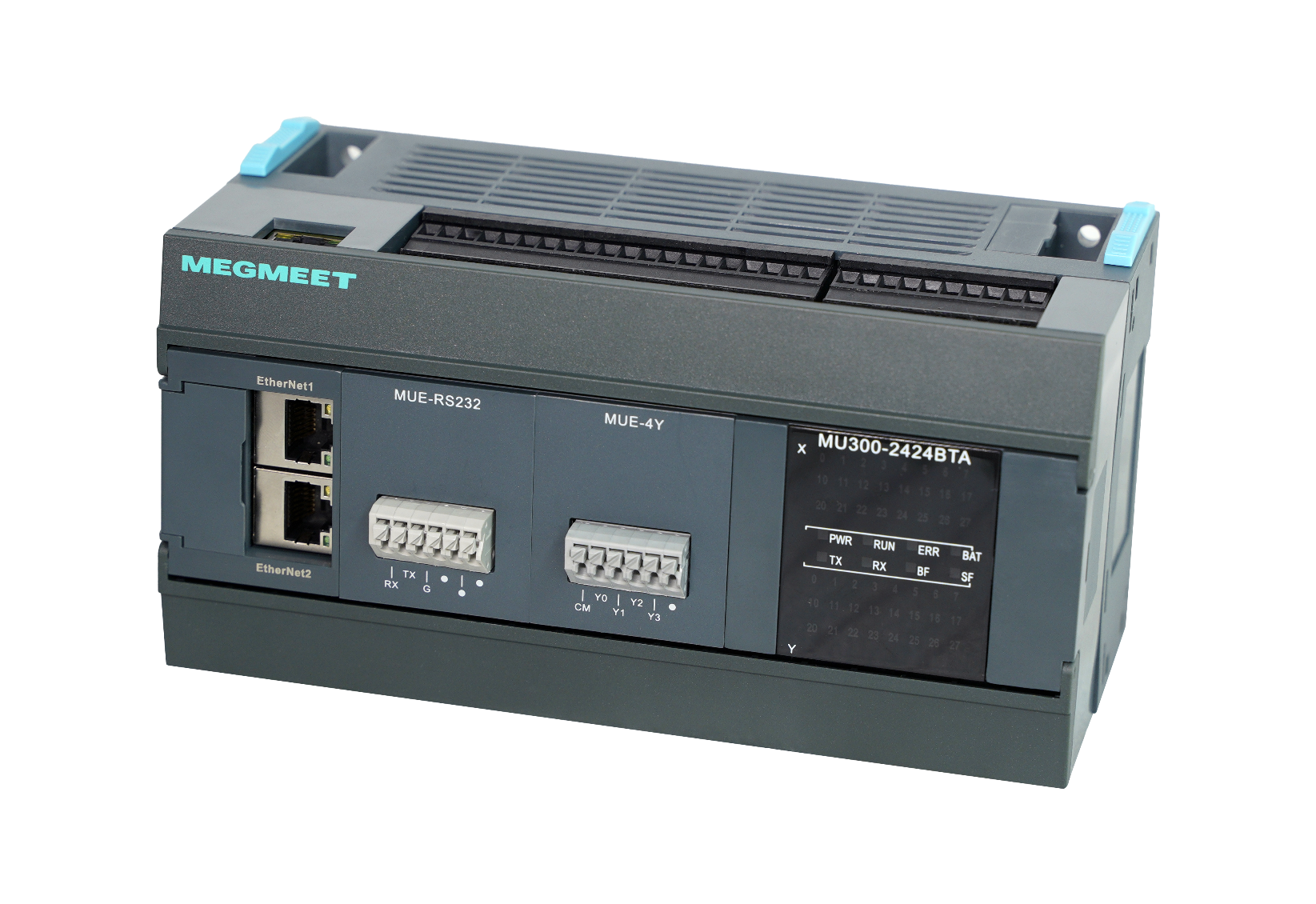

MU300 Series Small PLC
MU300 series is a new bus-type small PLC launched by MEGMEET, equipped with high-performance CPU and EtherCAT/CANopen high-speed communication protocol. lt supports multi-axis bus control, interpolation, E-CAM, E-gear and other control functions, to achieve high-speed operation and efficient communication, flexible configuration and programming in 3C, packaging, hydraulic industry or other control scenarios.
Download
Features
Flexible expansion
IO point expands up to 240;
Expansion module: 12 (Max.)
Expansion card: 2 (Max.)
EtherCAT Control
Min. control cycle: 500us, Max. axis control: 16, 32 slaves
Excellent performance
Support 8-channel 200K high-speed pulse output and single-phase pulse count, or 4-channel 100K, AB-phase,CW/CCW, pulse+direction
Motion control
Support linear interpolation, circular interpolation,E-CAM and E-gear
Fast Execution Speed
ARM+FPGA dual-core processor;
Basic instruction: 30ns;
Application instruction: 0.5~10us;
Scan speed: 1ms/10K
Large capacity
Program capacity: 64K
C language: 32K Byte
