Control System MC100 Series Small PLC

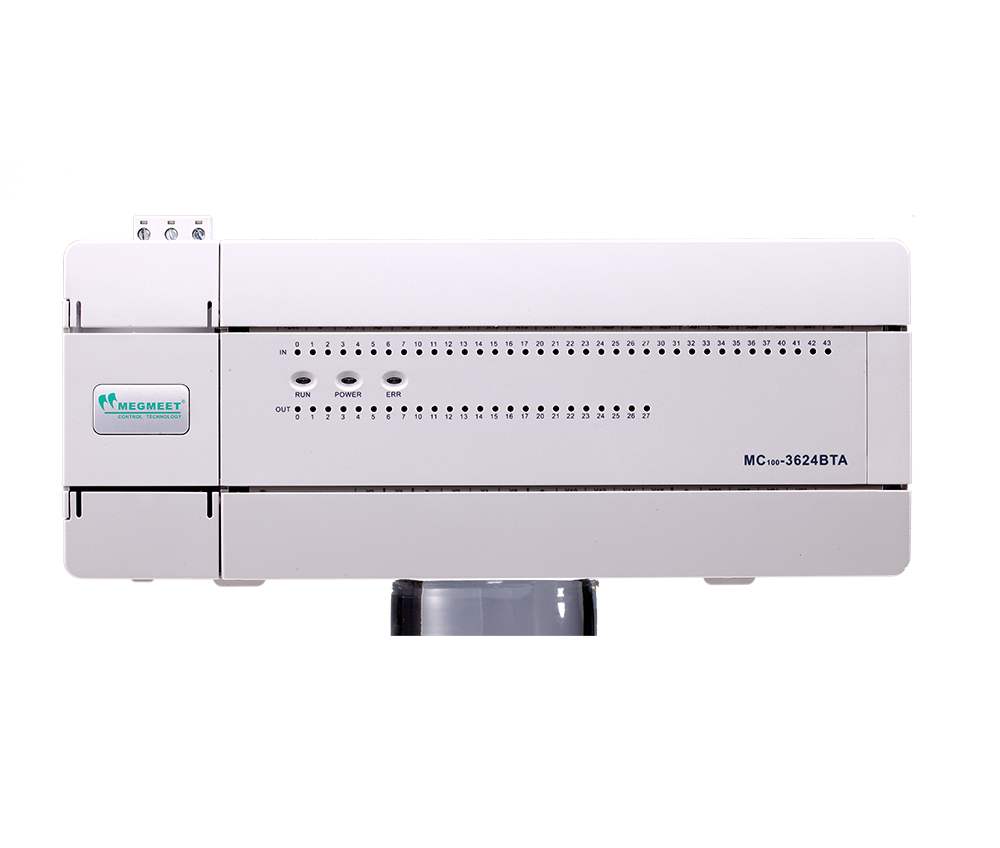

MC100 Series Small PLC
MC100 series programmable logic controller has the characteristics of small size, large capacity, high configuration and high speed, owning rich interrupt resources and strong communication networking capabilities. Its functions of powerful positioning and high-speed processing can realize the control operation on servo or stepping motor.
Download
Features
Analog Quantity Signal
Integrate the input and output of analog quantity
Built-in High-speed Processing
6-channel high-speed pulse input, with a maximum frequency of 50KHz; 2-channel 100KHz high-speed pulse output
Large Program Capacity
Program capacity: up to 16K;
Basic instruction: 0.3us, and can connect up to 4 expansion modules
Multiple Communication Protocol
Support MCBUS network communication protocol, MODBUS protocol, and OPC service
Program Protection
8-digit password protection and program uploading prohibition can be set to prevent unauthorized program duplication
Variable Speed Pulse
Support variable speed pulse output and envelope pulse output functions to realize multi-segment speed variation control on servo or stepping motor
Applications

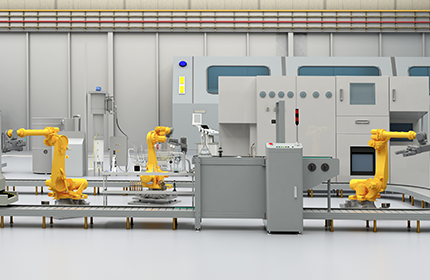

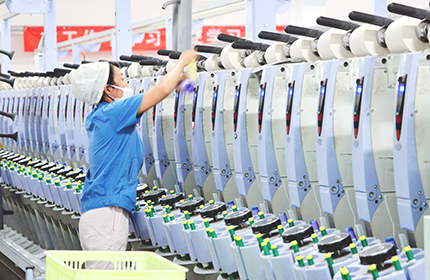

It is widely used in municipal services, textile, package printing, HVAC, non-standard equipment and other industries
Download
Control System Brochure.pdf
2024-09-24
X_Builder_2.06B01D01(MC100-1208).zip
47.67
2023-08-31
PLC Programme Software X_Builder 2.15.zip
55.8
2023-08-31
MC Series Small PLC Programming Manual
2023-12-29
PLC Wire Drive.zip
3.67
2023-08-31
MC100、MC80 Series Basic&Expansion Module User Quick Start Manual.pdf
2024-05-31
MC100 Series Integrated Thermal Resistance Basic Module User Manual.pdf
2024-05-31
MC100 Series Integrated Analog Quantity Basic Module User Manual.pdf
2024-05-31
MC100 Series 8-channel Integrated Analog Quantity Basic Module User Manual.pdf
2024-05-31
MC100-5AM User Quick Start Manual.pdf
2024-05-31
MC100-2TC 4TC User Quick Start Manual.pdf
2024-05-31
MC100-2PT 4PT User Quick Start Manual.pdf
2024-05-31
MC100-2DA 4DA User Quick Start Manual.pdf
2024-05-31
MC100-2AD 4AD User Quick Start Manual.pdf
2024-05-31
MC100-2WT User Quick Start Manual.pdf
2024-05-31
MC100-1WT User Quick Start Manual.pdf
2024-05-31
