Industry-Specific Products MV600L AC Drive for Cranes

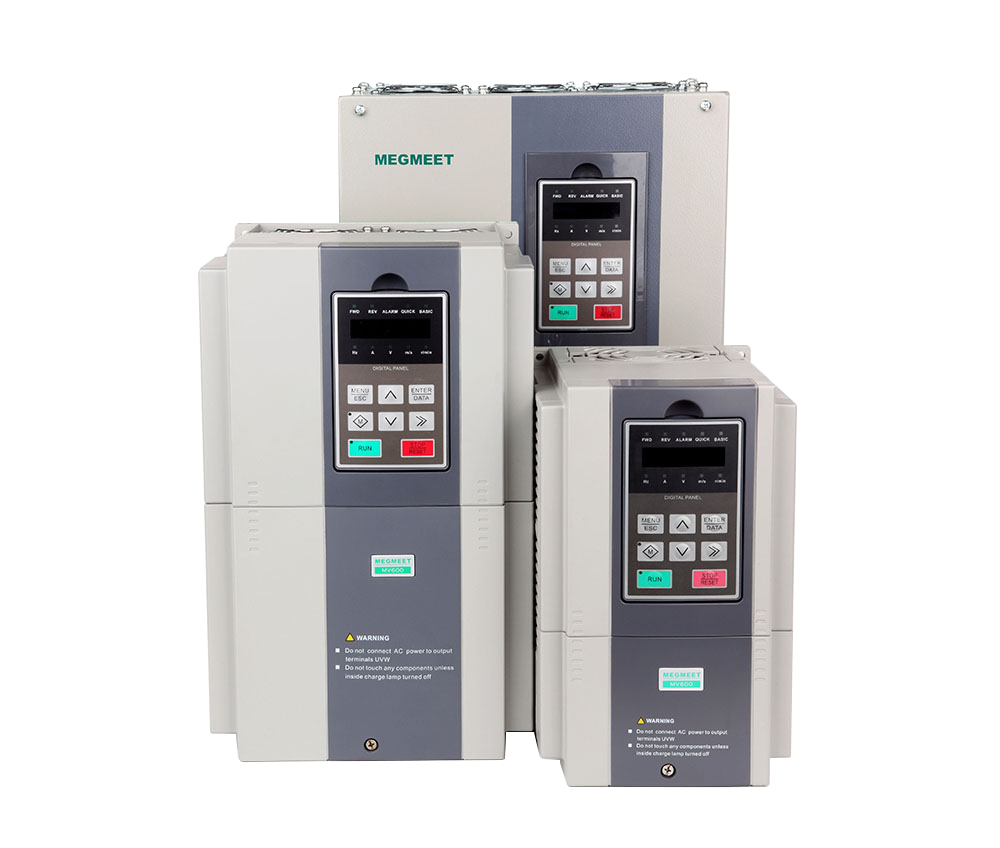

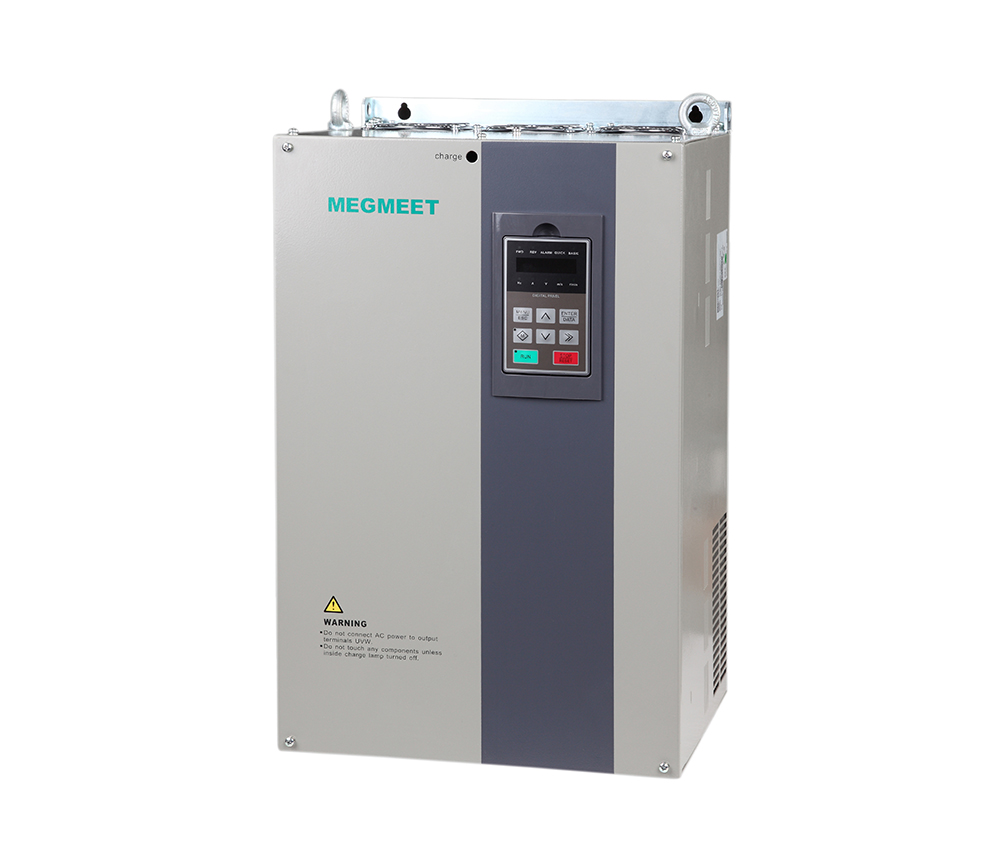

MV600L AC Drive for Cranes
The MV600L series AC drive is specialized for cranes. The drive is developed with most concern on safety and reliability, and with further optimized design related to the installation, commissioning, operation and maintenance of lifting equipment. It possesses a leading position in the market.
Download
Features
Closed-Loop Hoisting Mode
Built-in brake release/close logic, and light load speed boost
Easy to Use
Applying different motor parameters and operation modes through one key
High Reliability
Speed deviation protection, overspeed protection, off-load protection, brake fatigue and other functions
Industry-Specific Functions
Brake logic control, light load speed boost, power dip ride-through, off-load detection, overspeed detection, brake reliability test and torque limit
Integrated Control
Flux vector control without PG, flux vector control with PG, V/F control, V/F control with PG
Luffing Mode
Built-in brake release/close logic, and light load speed boost
Open-Loop Hoisting Mode
Built-in brake release/close logic
Slewing Mode
Multi-motor flexible vector control (SVC/FVC), and built-in eddy current control signals
Superior Adaptability
Independent airduct design and PCB conformal coating techniques; and wide power voltage: 323 to 528 V
Applications

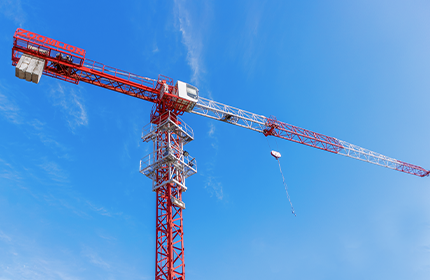

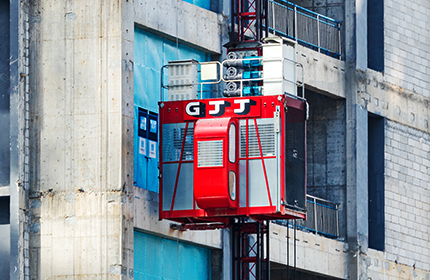

Widely used for cranes and construction elevators
Download
MEGMEET Lifting Industry Solutions Brochure
14.2M
2023-09-06
MV600L Series Drive Special for Lifting Simplified User Manual
1M
2023-09-06
