AC Drive MV160G
MV160G

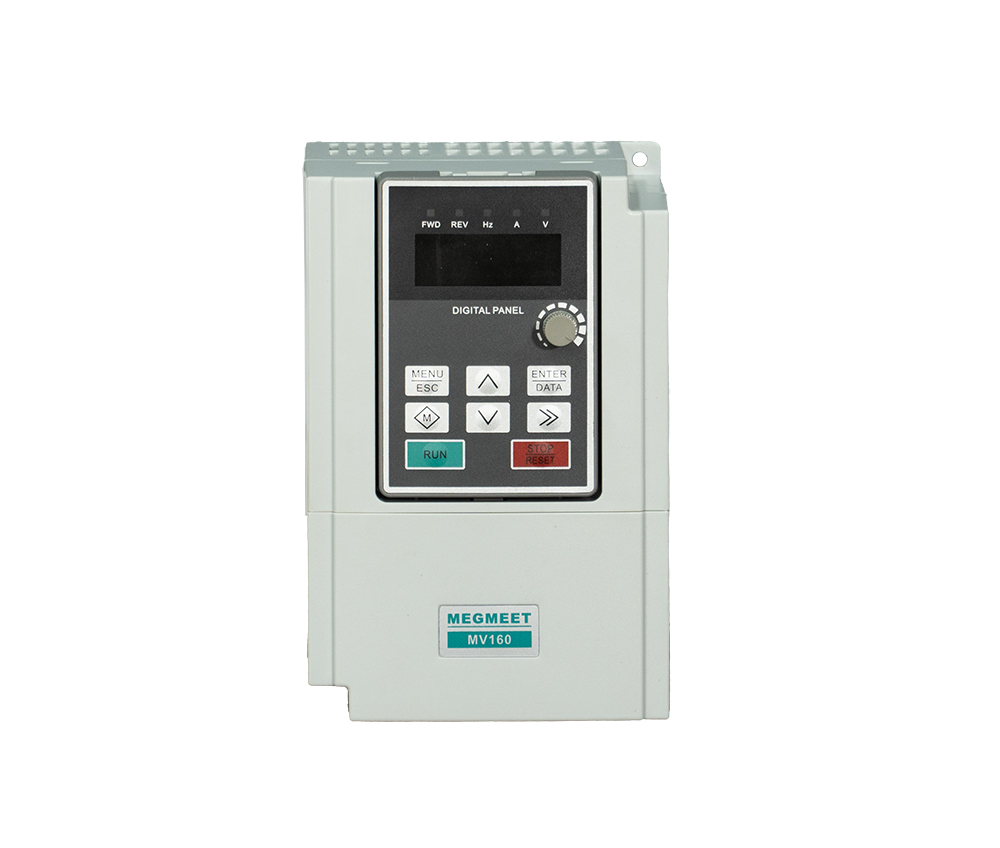

MV160G, mini-type AC drive, adopts a new platform for hardware design, integrates both V/F control and SVC control, and offers excellent drive performance. Compact design, rich set of functions, easy to install and operate, quick commissioning and maintenance, the drive has a favorable price-performance ratio for general purpose use and the OEM market.
Download
Features
Easy to Use
One-key calling of operation modes, easy commissioning; optional external keypad; manually removable fan
Excellent Performance
Fast start and stop, larger torque on low frequency, enhancing drive control
High Overload Capacity
150% rated current for 1 min, 180% rated current for 3s, and 200% rated current for 1s
High Reliability
Critical components from international brands, redundant design for main circuit, easily handling sudden overload
Superior Adaptability
Independent airduct design, PCB conformal coating techniques, well adapted to power mains fluctuation and low voltage (-10%)
Applications

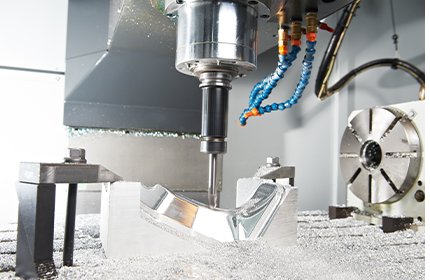

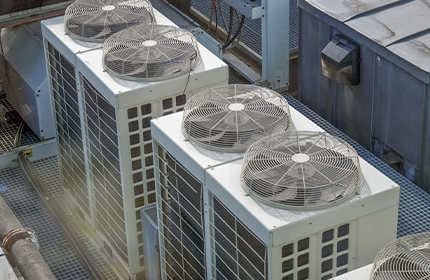

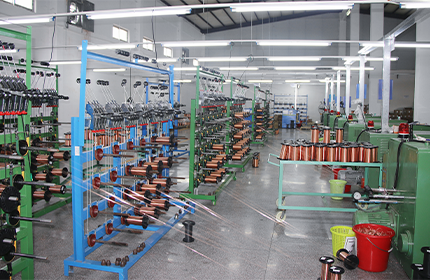

Widely used for HVAC, carving, and wire & cables machines
