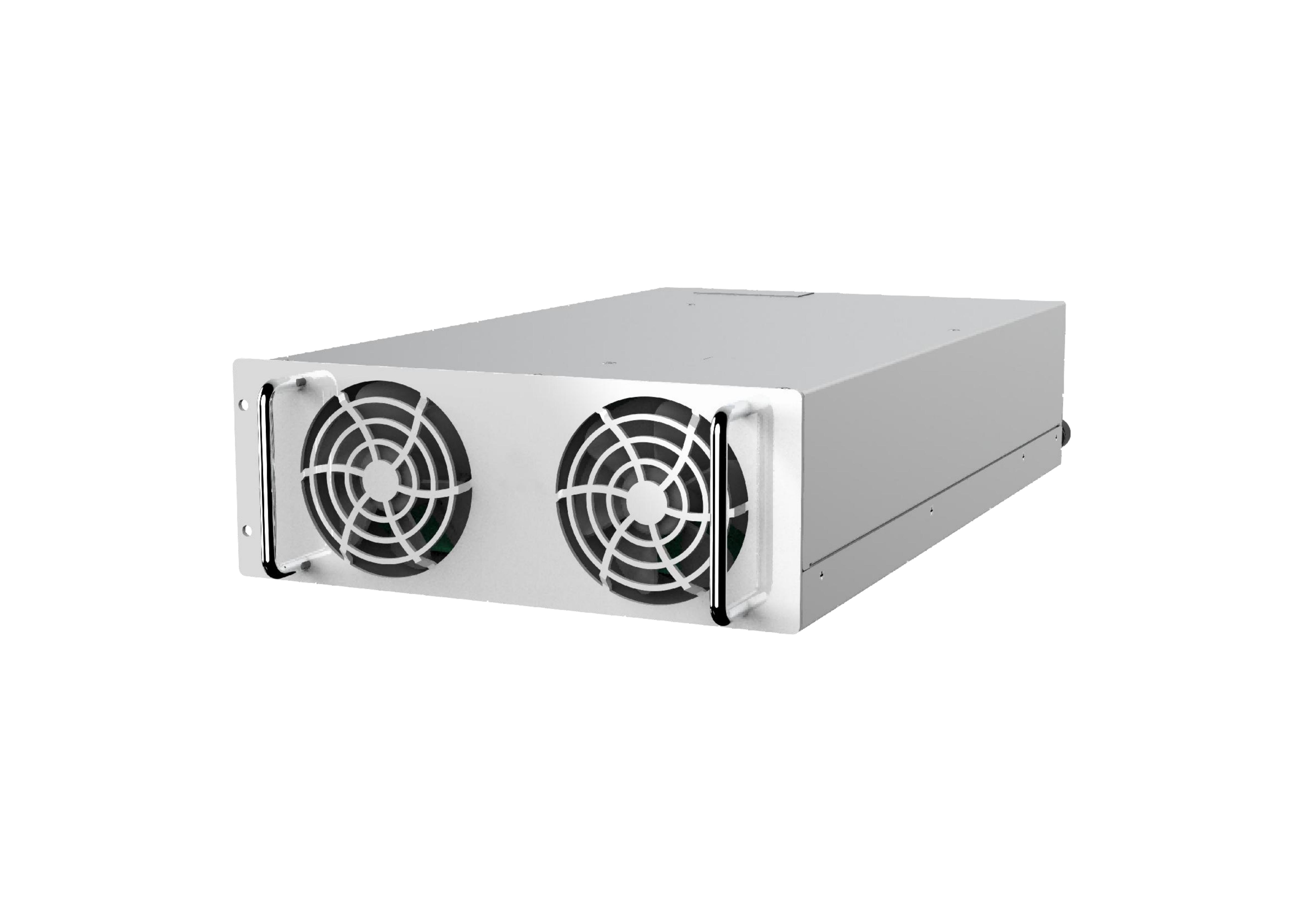

Charging Point Products MPC10020KT-C4
MPC10020KT-C4
A globally compatible 20kW charging module featuring an ultra-wide AC input of 187~528 VAC to match multi-country power grids. It provides a DC output of 20~120 V / 200A and includes a built-in output relay, eliminating the need for external contactors in the charger. With a THD ≤ 3% (outperforming GB standards), it supports large-scale networking of up to 60 parallel units via CAN bus. It also integrates an independent 12 V / 5A auxiliary power supply and achieves an efficiency of ≥ 94.8%, making it widely applicable for overseas low-voltage fast charging stations across Europe, America, and Asia.
Features
Ultra-wide output voltage range
Provides high-efficiency
charging solutions for new
energy vehicles worldwide
Global Applicability
Widely
deployed across global
charging networks
Flexible Scalability
Supports parallel operation
of multiple units
Built-in Output Relay
Reduces ancillary costs
for charging stations
Applications
Widely used in charging fields such as electric vehicles and construction machinery vehicles
