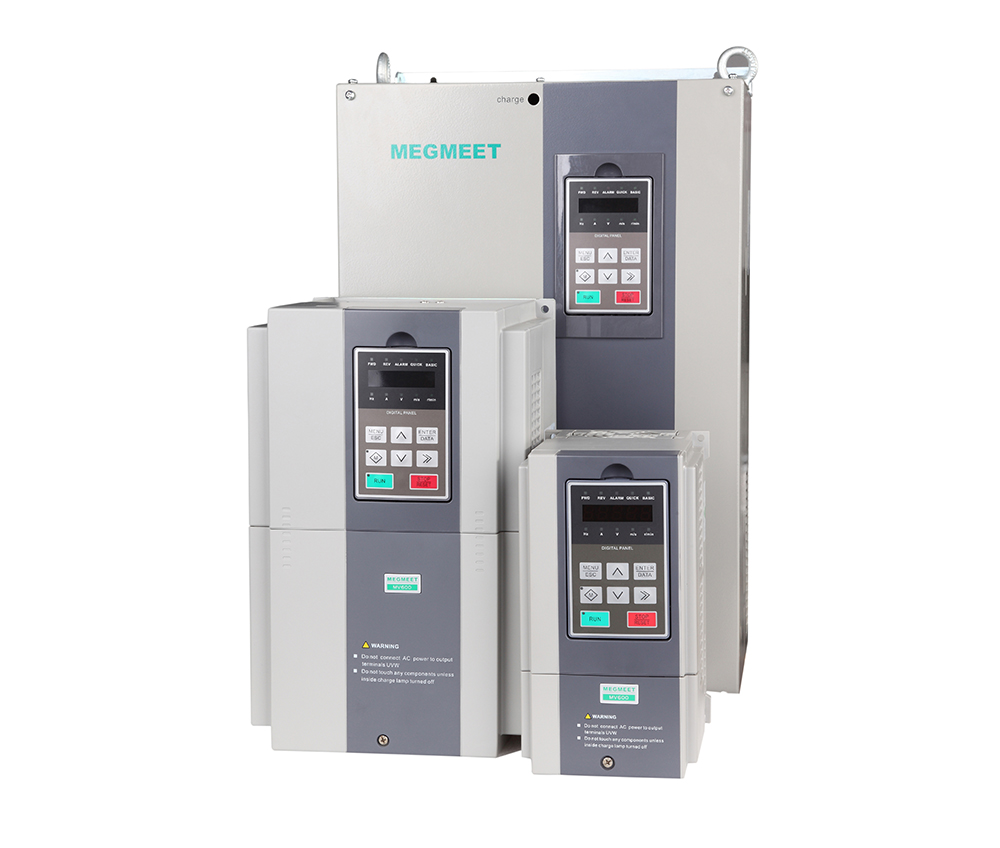

AC Drive MV600G
MV600G
MV600G, new-generation high-performance drive for integrated vector control, adopts DSP + FPGA and leading algorithms for integrated motor control, drives asynchronous motors, PM synchronous motors, linear motors and others, and unifies control of torque, speed and position. Its driving indicators rank high over the world, fit for complex scenarios requiring high performance.
Download
Features
Easy to Use
Smart keypad with parameter upload/download, RJ45 port for an optional external keypad
Excellent Performance
Leading closed-loop vector control algorithms, with stable operation, dynamic adaptation and high precision
Extensive Add-ons
Supporting various kinds of I/O, bus and PG expansions, improving system integration
High Overload Capacity
150% rated current for 1 min, 200% rated current for 1s
High Reliability
Mainstream modules with redundant capacity, built-in braking unit (18.5 to 90KW)
Integrated Drive and Control
Integrated drive of synchronous and asynchronous motors; integrated control of speed and torque
Rich Functions
Closed-loop process control, multi-function terminals, simple PLC, main/auxiliary reference, bus expansions, etc.
Superior Adaptability
Independent airduct design, PCB conformal coating techniques, well adapted to power mains fluctuation and low voltage (-10%)
Applications

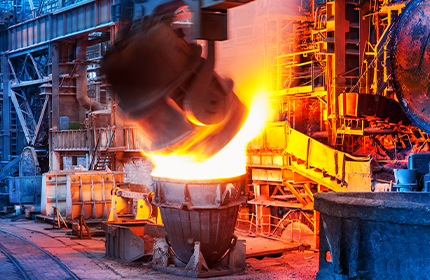

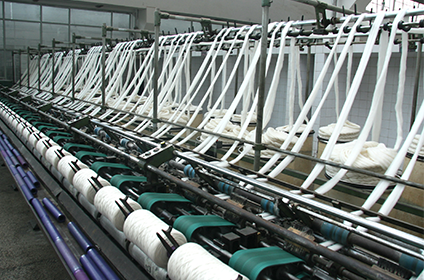

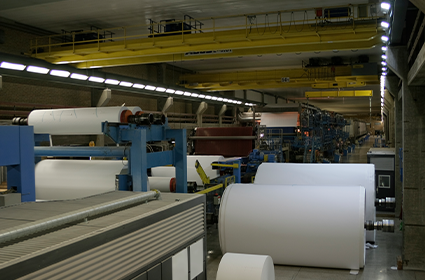

Widely used for printing and packaging, pulp and paper, metallurgy, and textile
Download
MV Series High-Performance Drive Brochure
11.5M
2023-09-06
MV600 Series Vector Control Drive User Manual
3.6M
2023-09-06
CANopen Communication User Manual
232K
2015-08-04
PROFIBUS Card EC-CMPDP01 User Manual
337K
2023-09-06
PROFIBUS-DP Communication GSD Configuration File
1.8K
2023-11-01
EC-PGINC User Manual
345K
2023-09-06
EC-PGRLV User Manual
359K
2023-09-06
EC-PGABS User Manual
471K
2023-09-06
AC Drives Upper Computer Software MvSmart V1.04.rar
5.7M
2023-08-30
