Servo System HM6 High-Power Servo System

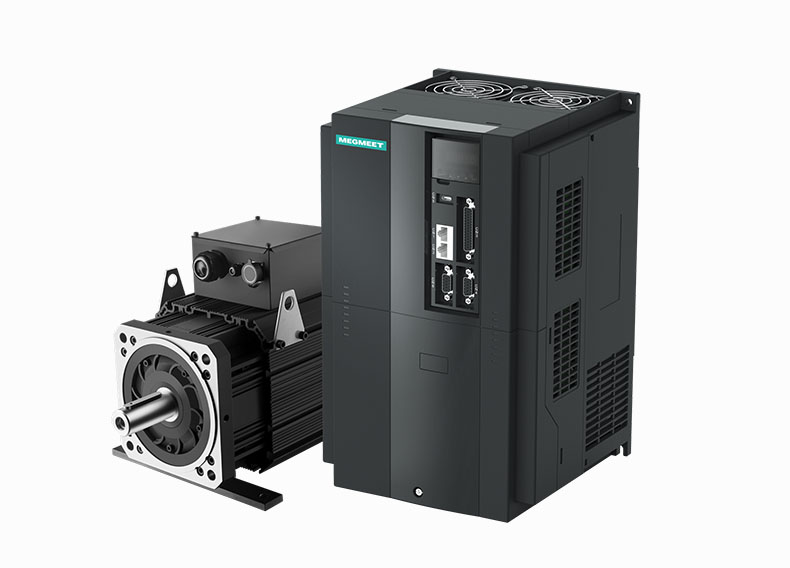

HM6 High-Power Servo System
Megmeet’s new-generation HM6 series servo system is featured with high response, high precision and high synchronization, and equipped with advanced functions such as online inertia identification, gain auto-tuning, vibration suppression, and quadrant compensation. Together with intelligent Megmeet host controller, HM6 is able to meet market requirements for mechanical equipment by high precision, high stability, high efficiency and ease of use.
Download
Features
Fully Closed-Loop Control
Reduce control errors caused by mechanical clearance and elasticity, improving accuracy and rigidity
Integrated Encoder Interface
23-bit multi-turn absolute encoder; ABZ incremental encoder; Sin/Cos encoder
High Response
Increased from 1.0 kHz to 2.0 kHz; high current loop and speed loop refresh rates; faster command response with enhanced rigidity
High Bandwidth
Maximum input/output pulse frequency of 4 Mpps; differential and open-collector inputs; A/B quadrature, PULS+SIGN, and CW/CCW modes
High Overload
300% overload capacity
Applications
Widely used in CNC machine tools, 3C and lithium battery
Download
HM6 Series Servo System Brochure
3.9M
2026-03-04
HM6-P Series Servo System User Manual
10M
2026-05-14
HM6-N Series Servo System User Manual
11.6M
2026-05-14
Servo Host Computer Ms Software (M5,DM5,M6,HM6,M6-L S6, MV600J6/J6B,MV810J)
78.8M
2026-01-22
