Control System MU400 Series Small PLC

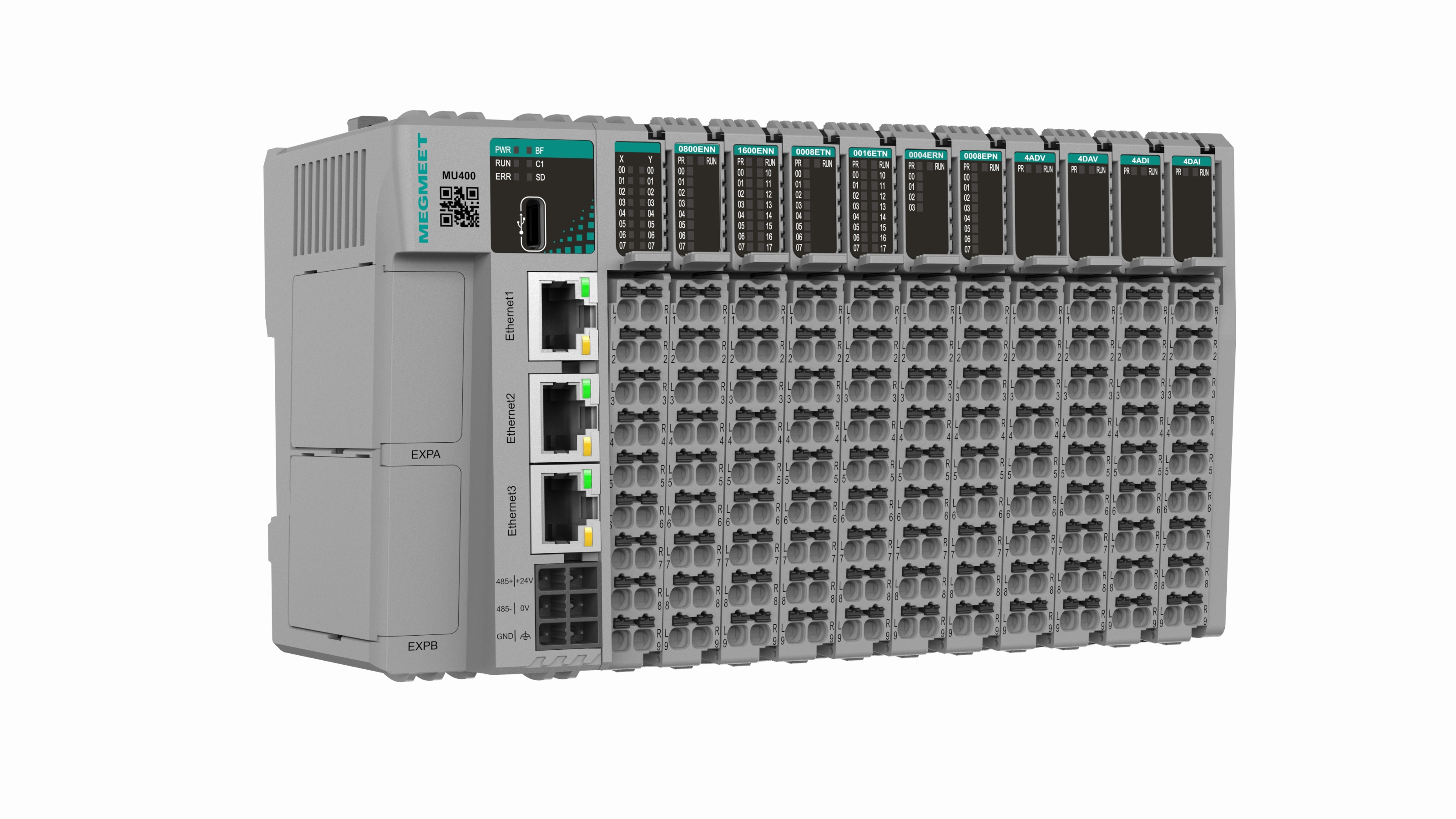

MU400 Series Small PLC
MU400 is a new generation of economical PLC based on mOPAX platform. It uses LD, ST and FBD languages in accordance with IEC-61121-3 / PLCopen standard; is equipped with EtherCAT, Ethernet, CAN, RS485 and other interfaces; owns 1M program capacity, 1M data capacity; The body is as thin as 12 mm, and supports up to 16 expansion modules, which can meet a variety of applications.
Download
Features
Rich expansion
Support up to 16 expansion modules;
Basic module integrates 2 expansion cards, and support the expansion of digital, analog, CAN, RS485 and RS232.
Intelligent EtherCAT control
2ms / 4-axis synchronization, ms-level response speed;
Standard EtherCAT master configuration, with up to 8 EtherCAT axis
High performance
MCU + FPGA dual-core processor, 600MHz frequency;
8*200K high-speed input, 8*200K pulse output (single pulse, pulse + direction, AB phase, FWD+REV, etc.)
Flexible & convenient operation
12mm machine body, saving space;
PUSH In terminal, easily wiring and replacing without tools
Applications
It is widely used in semiconductors, lithium batteries, 3C electronics, textiles, packaging, HVAC, and non-standard equipment, etc.
